Imaging Data Commons (IDC) Image Viewer Tutorial

The Imaging Data Commons (IDC) Image Viewer is an analysis tool within the GDC Data Portal. Researchers can use the tool to explore histopathology and radiology images for a selected cohort.

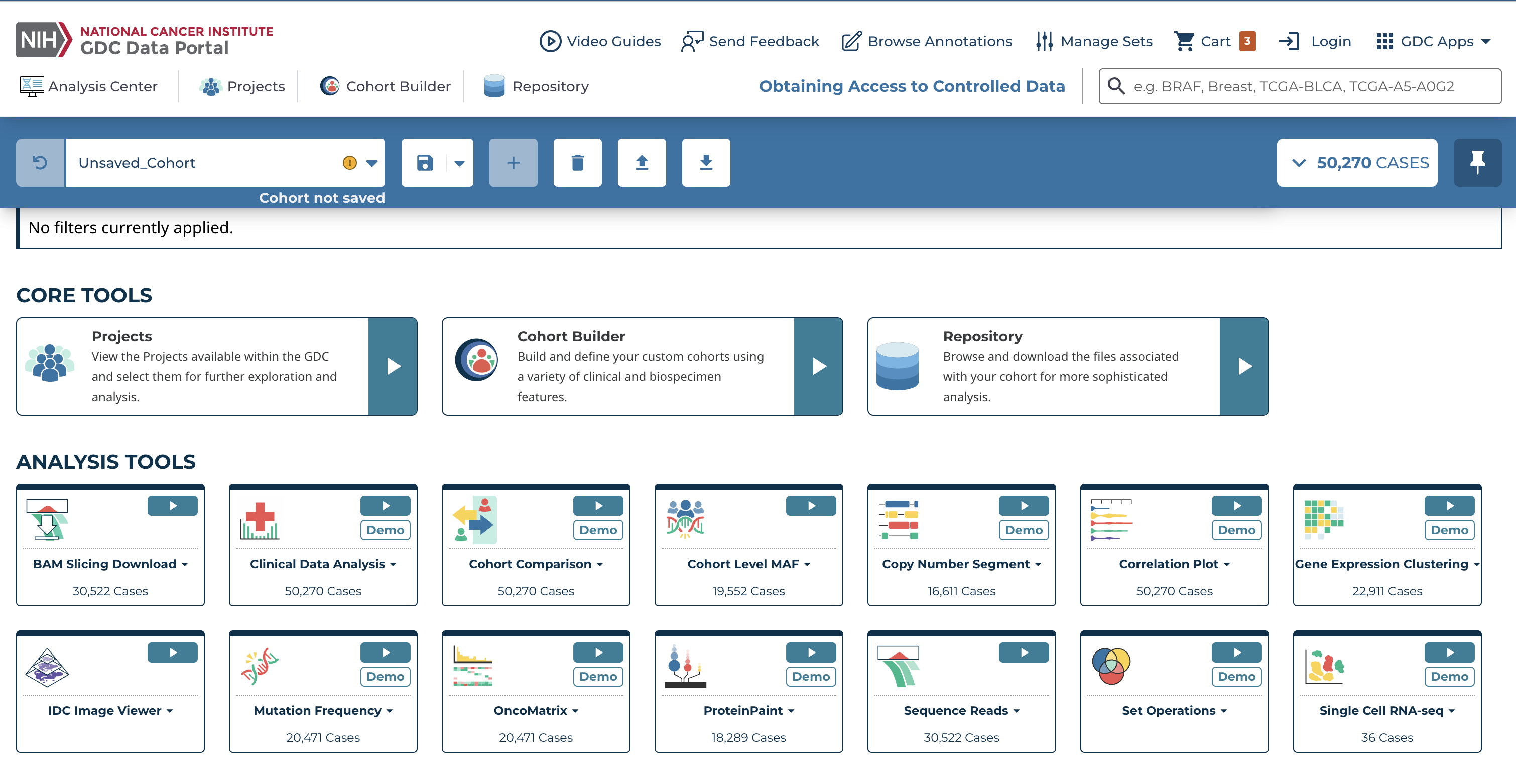

IDC Image Viewer card

Before using the IDC Image Viewer, a user can either create a cohort or use the default cohort, which includes all GDC cases.

To create a cohort in the GDC Data Portal, see Cohort Builder:

  • Open Cohort Builder from the GDC Data Portal header, or from the Analysis Center Cohort Builder card
  • Use filter cards to narrow the current cohort to the cases of interest
  • For this tutorial, select: Project -> TCGA-BRCA
  • Check the active cohort in the main toolbar before continuing to the IDC Image Viewer

This creates a cohort of breast cancer cases. If no filters are applied, the default cohort (all GDC cases) is used.

Open the IDC Image Viewer

After defining a cohort:

  • Select Analysis Center
  • Select IDC Image Viewer

This opens the table shown below.

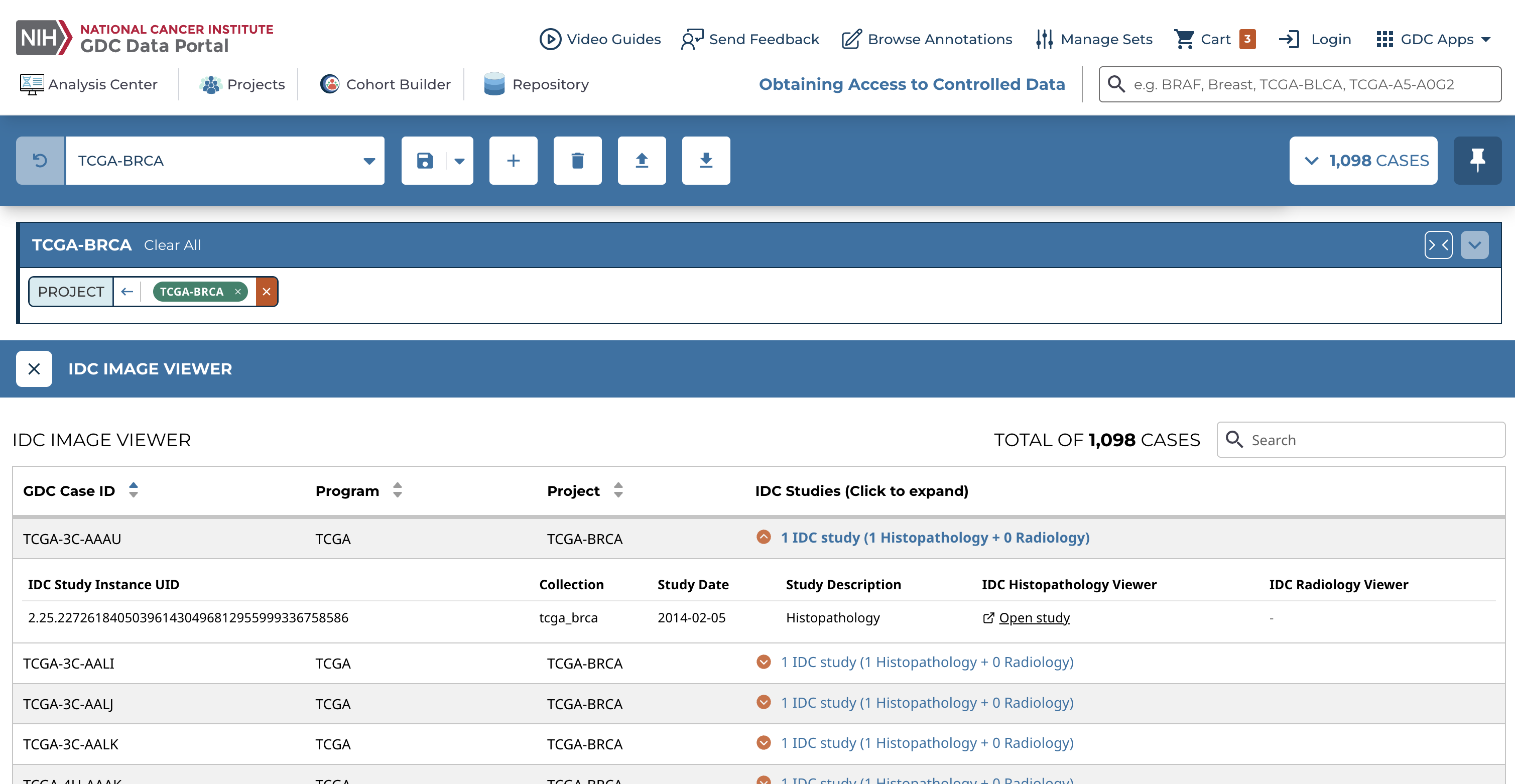

IDC Image Viewer cohort table

The table includes:

  • GDC Case ID
  • Program (e.g., TCGA)
  • Project (e.g., TCGA-BRCA)
  • IDC Studies (Click to expand)

A user can search for GDC cases in this table, but the full GDC Case ID must be entered, and the search is currently case-sensitive.

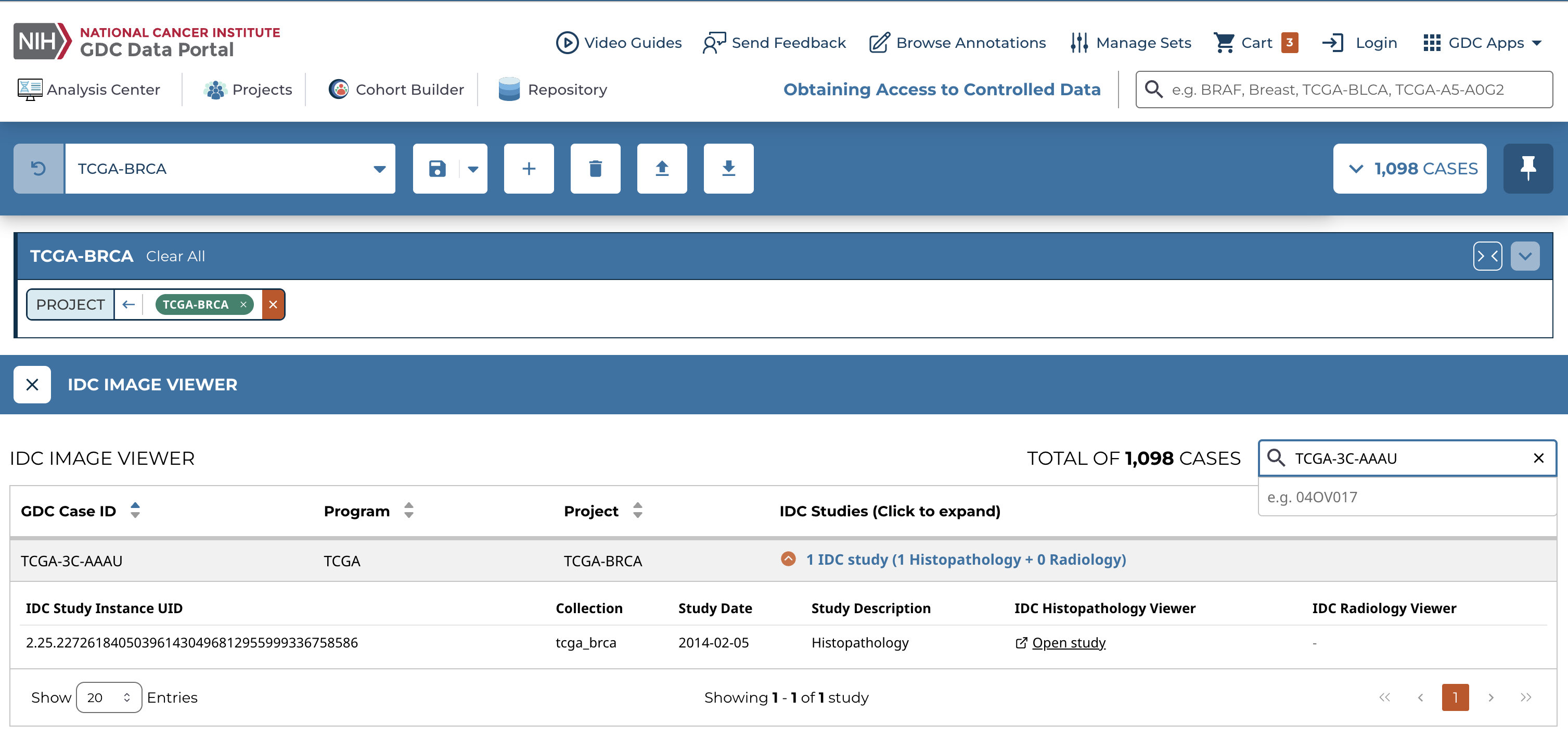

IDC Image Viewer search

Each GDC case includes a list of associated IDC studies. To view them, select the IDC Studies link to expand the row in the table.

For case TCGA-3C-AAAU, the IDC Study Instance Unique Identifier (UID) is:

2.25.227261840503961430496812955999336758586

To view the corresponding histopathology images in IDC, select Open study in the IDC Histopathology Viewer column for this case.

Some GDC cases may have multiple associated studies. For example, case TCGA-AO-A0J8 can be found using search and has 2 associated studies: 1 histopathology study and 1 radiology study.

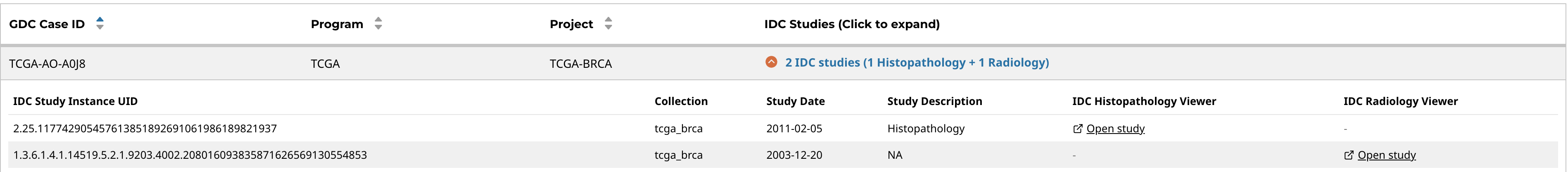

IDC case with multiple associated studies

In this example, use Open study in the IDC Histopathology Viewer column to open pathology slide images, and use Open study in the IDC Radiology Viewer column to open radiology image series.

For instructions on using each viewer, see the IDC User's Guide:
